Configuring Tags

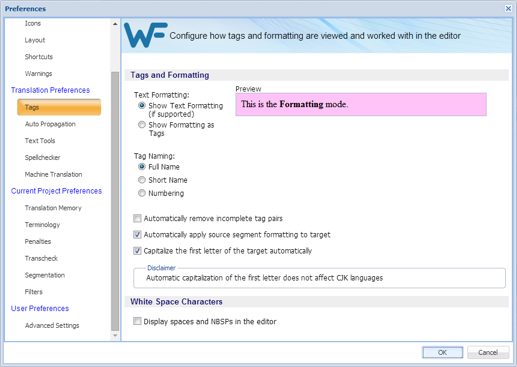

Configure the tag mode, representation, and font size by navigating to Preferences then Tags as described below.

Note:

The project as configured in Project Director (PD) may not support formatting tags.

To modify tag settings from the Preferences option:

The tag options are listed in the following tables, modify the options as required.

Text Formatting

Tag Option	Description
Show Text Formatting	Show actual formatting associated with formatting tags (when supported). When selected, a preview appears.
Show Formatting as Tags	Show the content of the formatting tags. When selected, a preview appears, as shown in the example above.

Tag Naming

Tag Option	Description
Full Name	View full name of the tag. For example, Font.
Short Name	View short name of the tag. For example, F.
Numbering	View the tag as a number.
Automatically remove incomplete tag pairs	Delete incomplete or incorrect tags.
Automatically apply segment formatting	Automatically apply formatting to the entire segment.
Capitalize First Letter	Capitalize the first letter of the first word in the segment.

White Space Character

Tag	Description
Display spaces and NBSPs in the editor	Show all spaces including non-breaking white spaces as a middle dot (·).
